HIGH PRESSURE REDUCING COUPLING 1000 Bar
HEX REDUCING COUPLING/15K Female
FAV is the manufacturer of High Pressure Reducing Coupling 15000 psi , 1000 Bars. It has NPT Female Connection on both sides .
Standard Material for HEX REDUCING COUPLING, 15000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .
Common sizes are 1/4″ NPT Female , 3/8″ NPT Female , 1/2″ NPT Female , 3/4″ NPT Female , 1″ NPT Female .
High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

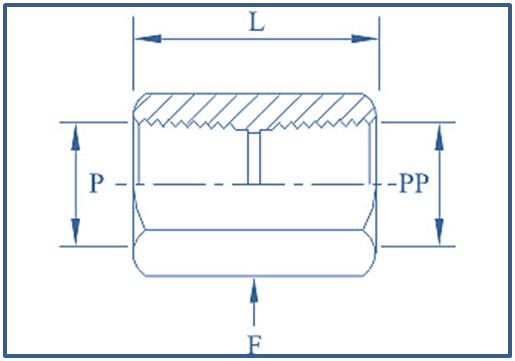

| PART No. | P | PP | F | L |
| NPTF | NPTF | HEX | ||
| FHPF/15K/HRC/4-2I | 1/4″ | 1/8″ | 7/8″ | 0.95″ |
| FHPF/15K/HRC/6-2I | 3/8″ | 1/8″ | 1-1/8″ | 0.95″ |
| FHPF/15K/HRC/6-4I | 3/8″ | 1/4″ | 1-1/8″ | 1.13″ |
| FHPF/15K/HRC/8-2I | 1/2″ | 1/8″ | 1-3/8″ | 1.19″ |
| FHPF/15K/HRC/8-4I | 1/2″ | 1/4″ | 1-3/8″ | 1.37″ |
| FHPF/15K/HRC/8-6I | 1/2″ | 3/8″ | 1-3/8″ | 1.37″ |
| FHPF/15K/HRC/12-4I | 3/4″ | 1/4″ | 1-3/4″ | 1.40″ |
| FHPF/15K/HRC/12-6I | 3/4″ | 3/8″ | 1-3/4″ | 1.40″ |
| FHPF/15K/HRC/12-8I | 3/4″ | 1/2″ | 1-3/4″ | 1.53″ |
| FHPF/15K/HRC/16-4I | 1″ | 1/4″ | 2-1/4″ | 1.63″ |
| FHPF/15K/HRC/16-6I | 1″ | 3/8″ | 2-1/4″ | 1.63″ |
| FHPF/15K/HRC/16-8I | 1″ | 1/2″ | 2-1/4″ | 1.76″ |
| FHPF/15K/HRC/16-12I | 1″ | 3/4″ | 2-1/4″ | 1.76″ |
