Hex Long Coupling
Hex Long Coupling
We make and stock Hex Long Coupling in sizes 1.5 to 3 . Standards is NPT Threads .They are also available in BSP ,BSPT and Metric.

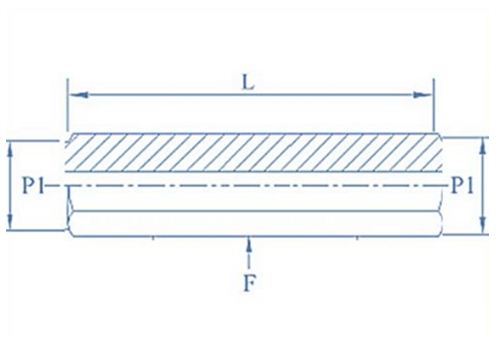

| PART No. | L | P1 | 0D | F | ||||||
| inch | inch | HEX | ||||||||
| FPF/HLC/2-2I | 1.5 | 2 | 2.5 | 3 | 4 | 1/8 | 0.19 | 7/16 | ||
| FPF/HLC/4-4I | 2 | 2.5 | 3 | 3.5 | 4 | 1/4 | 0.28 | 7/16 | ||
| FPF/HLC/6-6I | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 3/8 | 0.33 | 11/16 |
| FPF/HLC/8-8I | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 1/2 | 0.47 | 7/8 |
| FPF/HLC/12-12I | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 3/4 | 0.62 | 1-1/16 | |
| FPF/HLC/16-16I | 3 | 3.5 | 4 | 5 | 6 | 1 | 0.86 | 1-3/8 |
