Hex Adapter BSP Male (G Thread) X NPT Male
Hex Adapter BSP Male X NPT Male
We make and stock Hex Adapter BSP Male X NPT Male in sizes 1/16 to 2 . Standards is NPT Threads .They are also available in BSP ,BSPT and Metric.

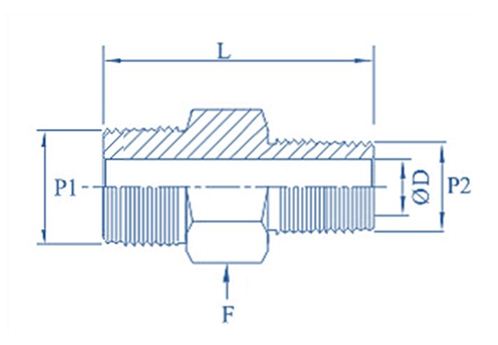

| PART No. | L | A | F | ||
| P1 BSP Male | P2 NPT Male | mm | mm | HEX | |
| FPF/HNGN/1I-1I | 1/16 | 1/16 | 25.6 | 9.7 | 3/8 |
| FPF/HNGN/2I-2I | 1/8 | 1/8 | 25.6 | 9.7 | 7/16 |
| FPF/HNGN/4I-4I | 1/4 | 1/4 | 35.6 | 14.2 | 9/16 |
| FPF/HNGN/6I-6I | 3/8 | 3/8 | 36.4 | 14.2 | 11/16 |
| FPF/HNGN/8I-8I | 1/2 | 1/2 | 46.5 | 19.1 | 7/8 |
| FPF/HNGN/12I-12I | 3/4 | 3/4 | 50.03 | 19.1 | 1-1/16 |
| FPF/HNGN/16I-16I | 1 | 1 | 59.43 | 23.90 | 1-3/8 |
| FPF/HNGN/20I-20I | 1-1/4 | 1-1/4 | 62.20 | 24.6 | 1-3/4 |
| FPF/HNGN/24I-24I | 1-1/2 | 1-1/2 | 65.00 | 25.4 | 2 |
