Gas Sample Cylinder / Sampling Bomb – Type 1

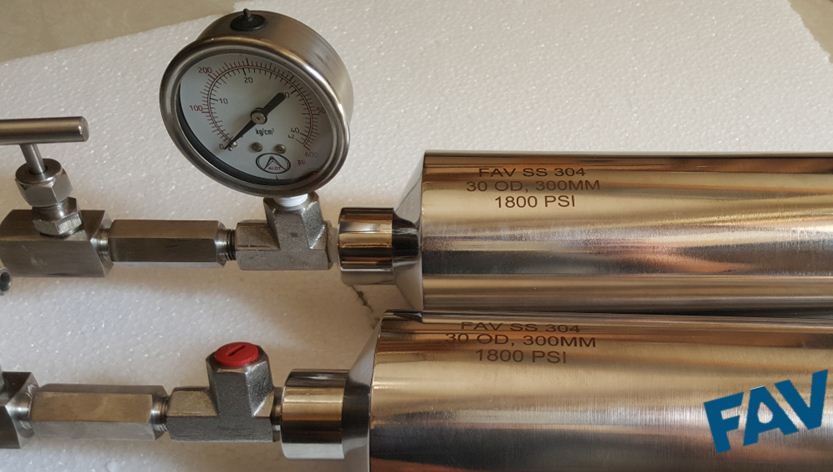

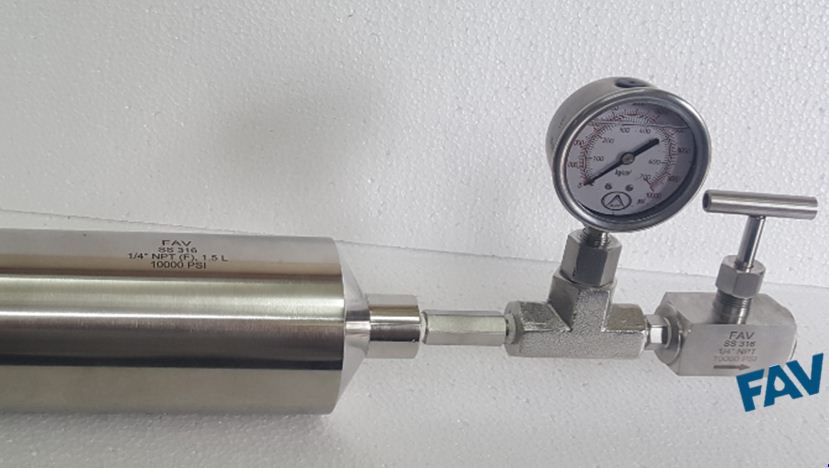

Consists of Sampling Cylinder as per Below Dimensions .One Pressure Gauge of Stainless Steel Material . One Street Tee . Two Needle Valve .One at Inlet and One at Outlet . Supporting Pipe Nipple may be used as per requirement .
FAV offers you full extent of Customization .Choose the standard design or send us your customized requirement on sales@fav.net.in
| PART No. | P NPT – F | Pressure Rating PSIG | Capacity (Internal Vol.)cm 3±5% | L mm | B mm | T mm |
| FSC150-4N | 1/4” | 5000 | 150 | 135 | 50.8 | 2.5 |
| FSC300-4N | 1/4” | 5000 | 300 | 225 | 50.8 | 2.5 |
| FSC400-4N | 1/4” | 5000 | 400 | 290 | 50.8 | 2.5 |
| FSC500-4N | 1/4” | 5000 | 500 | 350 | 50.8 | 2.5 |
| FSC1000-4N | 1/4” | 5000 | 1000 | 275 | 88.9 | 4.6 |
| FSC2250-4N | 1/4” | 5000 | 2250 | 435 | 120 | 5.2 |
| FSC3785-4N | 1/4” | 5000 | 3785 | 680 | 120 | 5.2 |
| FSC1000-8N | 1/2” | 5000 | 1000 | 275 | 88.9 | 4.6 |
| FSC2250-8N | 1/2” | 5000 | 2250 | 435 | 102 | 5.2 |
| FSC3785-8N | 1/2” | 5000 | 3785 | 680 | 102 | 5.2 |
| FSC1000-12N | 3/4” | 5000 | 1000 | 275 | 88.9 | 4.6 |
| FSC2250-12N | 3/4” | 5000 | 2250 | 435 | 102 | 5.2 |
| FSC3785-12N | 3/4” | 5000 | 3785 | 680 | 102 | 5.2 |
Typical Description Example-
SS 316 Sampling Cylinder ,Welded Design,2″ OD, 300 mm long , 1/4″ NPT Female ports on both sides , with SS 316 Street Tee ,1/4″ NPT,SS Pressure Guage ,Glycerin Filled ,1/4″ NPT ,2 Sets of SS 316 Needle Valve 1/4″ NPT Male X 1/4″ NPT Female,Rated Pressure 3000 psi
Features
1) Customize your own Gas Sample Cylinder that fits best in your process
2) Entire System available which include Pressure Gauges, Needle Valves and Pipe Fittings
3) Gas Sampling cylinders in different capacity of 150 cc, 300 cc, 500cc,1000cc, 1500cc
4) Variety of end connections includes Male / Female NPT, BSPT, BSPP
5) Dust Cap provided
6) High Pressure Rating upto 10000 psi
Typical Applications for Gas Sample Cylinder
• Sampling hydrocarbons in refineries and petrochemical plants
• Gas sampling for chromatographic analysis
• Snubbers in reactor feed lines
• Surge accumulators in high pressure gas systems
• High vacuum systems as experimental chambers and molecular sieves
• Chemical reaction vessels
