Condensate Pot Manufacturer and Exporter -FAV

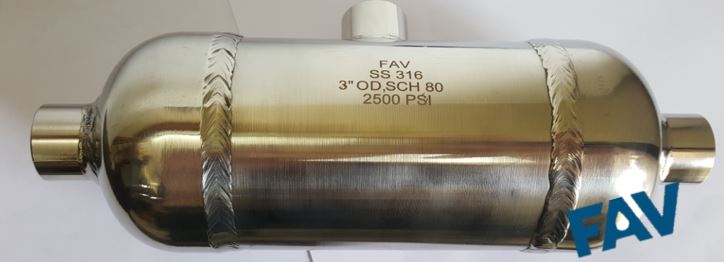

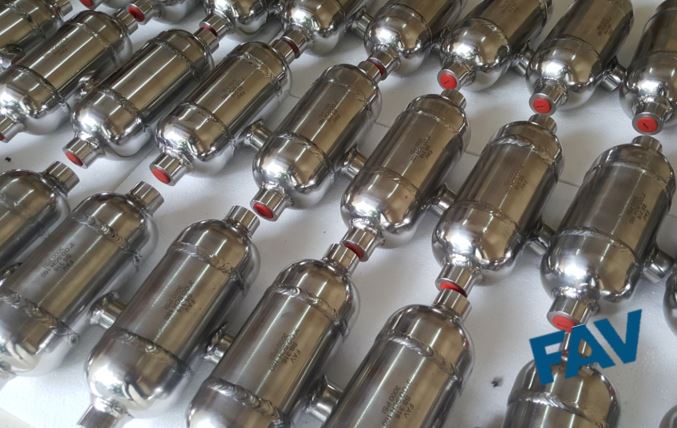

Condensate Vessel 3 port Type 2

Condensate Pot ManufacturerStainless Steel 316 Condensate Pot 3 Ports ,Schedule 40















Condensate Vessel 3 port Type 2



Key Selection Points:Condensate Pot
TypeSelect Design
MaterialSS304,SS316,SS316L, CS and MS
Pipe Length4″ to 16″
Pipe Size2″ to 4″
Pipe Schedule40,80,160,XX
Internal Volume Capacity40ml to 500 ml
Thread ConnectionNPT,BSP, Socket Weld
IBR CertificationIBR , Non IBR



PART No.P NPT – FPressure Rating PSIGCapacity (Internal Vol.)cm 3?5%L mmB mmT mm
FCP150-43PT21/4″180015013550.82.5
FCP300-43PT21/4″180030022550.82.5
FCP400-43PT21/4″180040029050.82.5
FCP500-43PT21/4″180050035050.82.5
FCP1000-43PT21/4″1800100027588.94.6
FCP2250-43PT21/4″180022504351205.2
FCP3785-43PT21/4″180037856801205.2
FCP1000-83PT21/2″1800100027588.94.6
FCP2250-83PT21/2″180022504351025.2
FCP3785-83PT21/2″180037856801025.2
FCP1000-123PT23/4″1800100027588.94.6
FCP2250-123PT23/4″180022504351025.2
FCP3785-123PT23/4″180037856801025.2

Condensate Pot Design

Condensate Pots manufactured  from Seamless pipe. Standard pipe sizes are 2″ to 6″. Connection fittings are then installed on Condensate Pots be it NPT or welded socket adaptors, Butt Weld…etc. Condensate Pots Drawing available for your custom made needs.

6 Unique Advantages of FAV Condensate Pots ?

  1. Every Pot is tested. We don’t believe in sampling. We test each pot individually by Hydro testing. Every Seal Pot is factory tested
  2. Available in variety of material like Steel,Alloy Steel,P11 ,P22, ASTM A105
  3. Variety of end connections
  4. High Pressure upto 10000 psi also available on request .High Temperature also available
  5. Ready Stock of Standard Range .
  6. Competitive Pricing compared to other Condensate Pot Manufacturer
