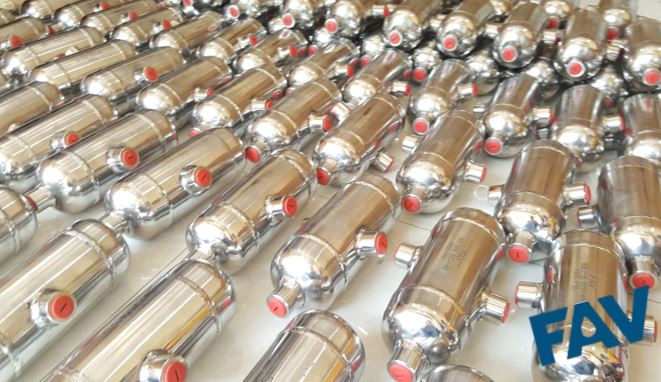

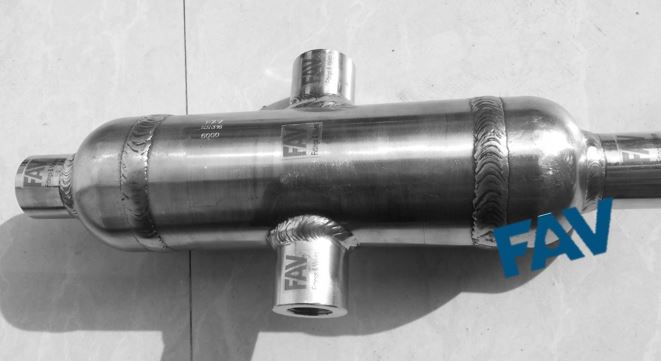

Condensate Seal Pot 4 Ports Type 2

Condensate Pot Condensate Pot2

















Condensate Seal Pots 4 Ports Type 2

Key Selection Points-Condensate Pot 4 Ports Type 2 for boilers steam
TypeSelect Design
MaterialSS304,SS316,SS316L, CS and MS
Pipe Length4″ to 16″
Pipe Size2″ to 4″
Pipe Schedule40,80,160,XX
Internal Volume Capacity40ml to 500 ml
Thread ConnectionNPT,BSP, Socket Weld
IBR CertificationIBR , Non IBR



PART No.P NPT – FPressure Rating PSIGCapacity (Internal Vol.)cm 3?5%L mmB mmT mm
FCP150-44PT21/4180015013550.82.5
FCP300-44PT21/4180030022550.82.5
FCP400-44PT21/4180040029050.82.5
FCP500-44PT21/4180050035050.82.5
FCP1000-44PT21/41800100027588.94.6
FCP2250-44PT21/4180022504351205.2
FCP3785-44PT21/4180037856801205.2
FCP1000-84PT21/21800100027588.94.6
FCP2250-84PT21/2180022504351025.2
FCP3785-84PT21/2180037856801025.2
FCP1000-124PT23/41800100027588.94.6
FCP2250-124PT23/4180022504351025.2
FCP3785-124PT23/4180037856801025.2
