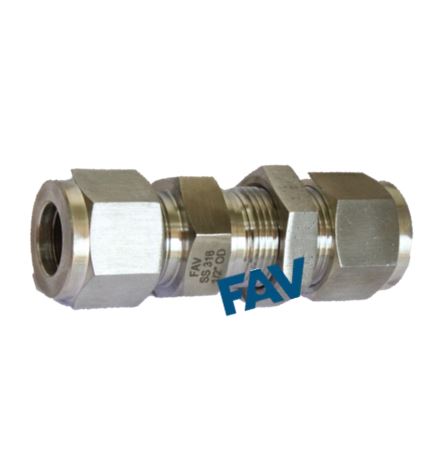

Bulkhead Union Tube OD
FAV manufactures Bulkhead Union Tube OD as a part of Double Ferrule Compression Tube Fittings is regular manufacturer and exporter all across the world. FAV Bulkhead Union along with Range of double ferrule fittings work on the proven principle of two ferrules swaging to the tube when tightened. As the nut is tightened the front ferrule swages on to the tube making a prominent leak-proof seal and the back ferrule makes a positive impression on the tube
| IMPERIAL | |||||||||
| PART No. | 0D1 Imperial | 0D | F Hex | A Inch | L Inch | Panel Hole size | Max Panel Thickness | H Inch | H1 mm |
| FCF/BU/1I | 1/16 | 0.05 | 5/16 | 0.34 | 1.24 | 13/64 | 0.12 | 23.87 | 13.46 |
| FCF/BU/2I | 1/8 | 0.09 | 1/2 | 0.50 | 2.02 | 21/64 | 0.50 | 38.10 | 24.63 |
| FCF/BU/3I | 3/16 | 0.12 | 9/16 | 0.54 | 2.11 | 25/64 | 0.50 | 40.38 | 25.40 |
| FCF/BU/4I | 1/4 | 0.19 | 5/8 | 0.60 | 2.27 | 29/64 | 0.40 | 42.92 | 26.16 |
| FCF/BU/5I | 5/16 | 0.25 | 11/16 | 0.64 | 2.39 | 33/64 | 0.44 | 45.97 | 28.44 |
| FCF/BU/6I | 3/8 | 0.28 | 3/4 | 0.66 | 2.45 | 37/64 | 0.44 | 47.49 | 29.46 |
| FCF/BU/8I | 1/2 | 0.41 | 15/16 | 0.90 | 2.80 | 49/64 | 0.50 | 50.80 | 31.75 |
| FCF/BU/10I | 5/8 | 0.50 | 1-1/16 | 0.96 | 2.86 | 57/64 | 0.50 | 52.32 | 32.51 |
| FCF/BU/12I | 3/4 | 0.62 | 1-3/16 | 0.96 | 3.11 | 11/64 | 0.66 | 58.67 | 37.33 |
| FCF/BU/16I | 1 | 0.88 | 1-5/8 | 1.23 | 3.77 | 121/64 | 0.75 | 71.37 | 45.21 |
| FCF/BU/20I | 1-1/4 | 1.09 | 1-7/8 | 1.62 | 4.85 | 141/64 | 0.75 | 78.99 | 47.75 |
| FCF/BU/24I | 1-1/2 | 1.34 | 2-1/4 | 1.97 | 5.48 | 161/64 | 0.75 | 84.83 | 49.27 |
| FCF/BU/32I | 2 | 1.81 | 2-3/4 | 2.66 | 7.10 | 241/64 | 0.75 | 105.66 | 56.38 |
| METRIC | |||||||||
| PART No. | 0D1 Metric | 0D | F Hex | A mm | L mm | Panel Hole size | Panel Thickness | H mm | H1 mm |
| FCF/BU/3M | 3 | 2.4 | 14 | 12.9 | 51.3 | 8.3 | 12.7 | 38.1 | 24.6 |
| FCF/BU/4M | 4 | 2.4 | 14 | 13.2 | 53.6 | 9.9 | 12.7 | 40.4 | 25.4 |
| FCF/BU/6M | 6 | 4.8 | 16 | 15.3 | 57.7 | 11.5 | 10.2 | 42.9 | 26.2 |
| FCF/BU/8M | 8 | 6.4 | 18 | 16.2 | 61.0 | 13.1 | 11.2 | 46.0 | 28.6 |
| FCF/BU/10M | 10 | 7.9 | 22 | 17.2 | 63.7 | 16.3 | 11.2 | 48.5 | 29.4 |
| FCF/BU/12M | 12 | 9.5 | 24 | 22.8 | 71.0 | 19.5 | 12.7 | 50.8 | 31.8 |
| FCF/BU/14M | 14 | 11.1 | 27 | 24.4 | 72.5 | 22.5 | 12.7 | 52.3 | 32.5 |
| FCF/BU/15M | 15 | 11.9 | 27 | 24.4 | 72.5 | 22.8 | 12.7 | 52.3 | 32.5 |
| FCF/BU/16M | 16 | 12.7 | 27 | 24.4 | 72.5 | 22.8 | 12.7 | 52.3 | 32.5 |
| FCF/BU/18M | 18 | 15.1 | 30 | 24.4 | 78.9 | 26.0 | 16.8 | 58.7 | 37.3 |
| FCF/BU/20M | 20 | 15.9 | 35 | 26.0 | 84.5 | 29.0 | 19.0 | 64.3 | 42.9 |
| FCF/BU/25M | 25 | 21.8 | 40 | 31.2 | 96.0 | 33.7 | 19.0 | 71.4 | 45.2 |
| FCF/BU/30M | 30 | 26.2 | 50 | 39.6 | 123.7 | 40.5 | 19.0 | 82.3 | 49.5 |
| FCF/BU/32M | 32 | 28.6 | 50 | 42.0 | 128.3 | 42.5 | 19.0 | 82.3 | 49.5 |
| FCF/BU/38M | 38 | 33.7 | 60 | 49.4 | 144.6 | 50.5 | 19.0 | 89.4 | 51.5 |
