Brass Hex Nipple
We make and stock BRASS HEX NIPPLE NPT MALE x NPT MALE in sizes 1/16 to 2 . Standards is NPT Threads .They are also available in BSP ,BSPT and Metric.

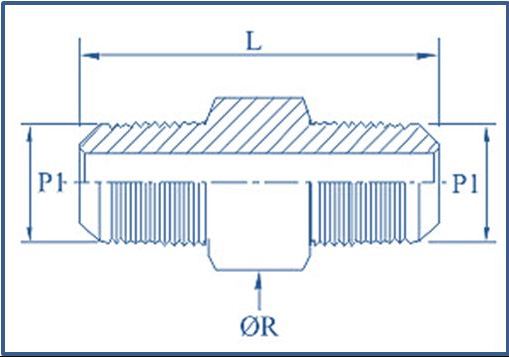

BRASS HEX NIPPLE NPT MALE x NPT MALE
| PART No. | P1 | L | A | F | |
| NPTM | NPTM | mm | mm | HEX | |
| FBF/HN/1I-1I | 1/16 | 1/16 | 25.6 | 9.7 | 3/8 |
| FBF/HN/2I-2I | 1/8 | 1/8 | 25.6 | 9.7 | 7/16 |
| FBF/HN/4I-4I | 1/4 | 1/4 | 35.6 | 14.2 | 9/16 |
| FBF/HN/6I-6I | 3/8 | 3/8 | 36.4 | 14.2 | 11/16 |
| FBF/HN/8I-8I | 1/2 | 1/2 | 46.5 | 19.1 | 7/8 |
| FBF/HN/12I-12I | 3/4 | 3/4 | 50.03 | 19.1 | 1-1/16 |
| FBF/HN/16I-16I | 1 | 1 | 59.43 | 23.90 | 1-3/8 |
| FBF/HN/20I-20I | 1-1/4 | 1-1/4 | 62.20 | 24.6 | 1-3/4 |
| FBF/HN/24I-24I | 1-1/2 | 1-1/2 | 65.00 | 25.4 | 2 |
We make and stock BRASS HEX NIPPLE BSPT MALE x BSPT MALE in sizes 1/16 to 2 . Standards is NPT Threads .They are also available in BSP ,BSPT and Metric.
BRASS HEX NIPPLE BSPT MALE x BSPT MALE
| PART No. | P1 | L | A | F | |
| BSPT M | BSPT M | mm | mm | HEX | |
| FBF/HNB/1I-1I | 1/16 | 1/16 | 25.6 | 9.7 | 3/8 |
| FBF/HNB/2I-2I | 1/8 | 1/8 | 25.6 | 9.7 | 7/16 |
| FBF/HNB/4I-4I | 1/4 | 1/4 | 35.6 | 14.2 | 9/16 |
| FBF/HNB/6I-6I | 3/8 | 3/8 | 36.4 | 14.2 | 11/16 |
| FBF/HNB/8I-8I | 1/2 | 1/2 | 46.5 | 19.1 | 7/8 |
| FBF/HNB/12I-12I | 3/4 | 3/4 | 50.03 | 19.1 | 1-1/16 |
| FBF/HNB/16I-16I | 1 | 1 | 59.43 | 23.90 | 1-3/8 |
| FBF/HNB/20I-20I | 1-1/4 | 1-1/4 | 62.20 | 24.6 | 1-3/4 |
| FBF/HNB/24I-24I | 1-1/2 | 1-1/2 | 65.00 | 25.4 | 2 |
BRASS CLOSE NIPPLE
BRASS CLOSE NIPPLE NPT MALE x NPT MALE
We make and stock BRASS CLOSE NIPPLE NPT MALE x NPT MALE in sizes 1/16 to 2 . Standards is NPT Threads .They are also available in BSP ,BSPT and Metric.
| PART No. | P1 | L | OR | |
| NPTM | NPTM | inch | inch | |
| FBF/CN/1-1I | 1/16 | 1/16 | 0.75 | 7/16 |
| FBF/CN/2-2I | 1/8 | 1/8 | 0.75 | 7/16 |
| FBF/CN/4-4I | 1/4 | 1/4 | 1.12 | 9/16 |
| FBF/CN/6-6I | 3/8 | 3/8 | 1.12 | 11/16 |
| FBF/CN/8-8I | 1/2 | 1/2 | 1.50 | 7/8 |
| FBF/CN/12-12I | 3/4 | 3/4 | 1.50 | 1-1/16 |
| FBF/CN/16-16I | 1 | 1 | 1.88 | 1-3/8 |
