HIGH PRESSURE ADAPTOR BSP 1000 Bar
Hex Adapter BSP,15000 psi
FAV is the manufacturer of High Pressure Adaptor BSP 15000 psi , 1000 Bars. It has BSP Female Connection on one side and BSP Male Connection on the other side .
Standard Material for Hex Adaptor ,15000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .
Common sizes are 1/4″ BSP Female X 1/4″ BSP Male, 3/8″ BSP Female X 3/8″ BSP Male , 1/2″ BSP Female X 1/2″ BSP Male, 3/4″ BSP Female X 3/4″ BSP Male, 1″ BSP Female X 1″ BSP Male.
High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

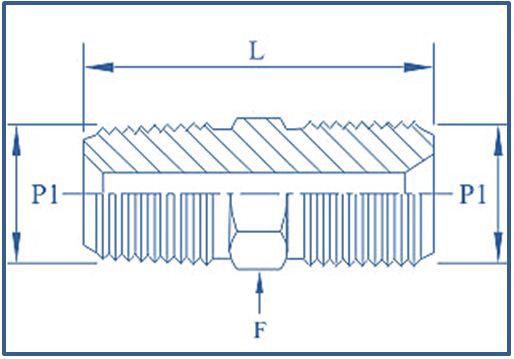

| PART No. | P | P1 | 0D | L | F |
| BSP F | BSP M | Inch | inch | HEX | |
| FHPF/15K/GA/2-2I | 1/8 | 1/8 | 0.19 | 1.10 | 9/16 |
| FHPF/15K/GA/4-4I | 1/4 | 1/4 | 0.28 | 1.40 | 3/4 |
| FHPF/15K/GA/6-6I | 3/8 | 3/8 | 0.38 | 1.51 | 7/8 |
| FHPF/15K/GA/8-8I | 1/2 | 1/2 | 0.47 | 1.94 | 1-1/16 |
| FHPF/15K/GA/12-12I | 3/4 | 3/4 | 0.62 | 2.02 | 1-1/4 |
| FHPF/15K/GA/16-16I | 1 | 1 | 0.88 | 2.28 | 1-5/8 |
