45 Deg Elbow 10000 Psi

High Pressure 45 Deg Elbow,10000 psi
High Pressure 45 Deg Elbow,10000 psi

Male X Female/10000

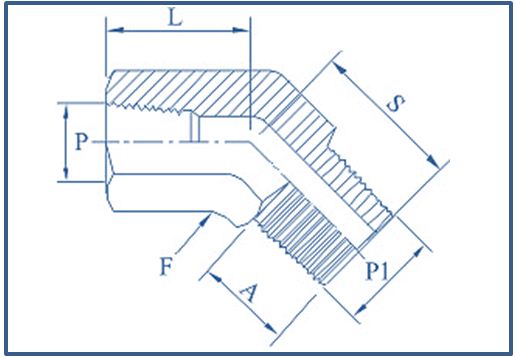

FAV is the manufacturer of High Pressure 45 Deg Elbow 10000 psi , 700 Bars. It has NPT Male Connection on one  side and NPT Female Connection on the other side with shape of elbow (L shape)

Standard Material for 45 deg Elbow,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .

Common sizes are 1/4″ NPTM X NPTF, 3/8″ NPTM X 3/8″ NPTF ,1/2″ NPTM X NPTF, 3/4″ NPTM X NPTF, 1″NPTM X NPTF

High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

PART No.PP1LSAF
 NPTF NPTMinchinchInchHEX
FHPF/10K/45ES/2-2I1/81/80.470.720.389/16
FHPF/10K/45ES/4-4I1/41/40.631.050.563/4
FHPF/10K/45ES/6-6I3/83/80.721.060.567/8
FHPF/10K/45ES/8-8I1/21/20.911.340.751-1/16
FHPF/10K/45ES/12-12I3/43/40.971.380.751-5/16
FHPF/10K/45ES/16-16I111.131.130.941-5/8
High Pressure 45 Deg Elbow,10000 psi
High Pressure Pipe 45 Deg Elbow Male X Female 6000psi

Female X Female/10000

FAV is the manufacturer of High Pressure 45 Deg Elbow 10000 psi, 700 Bars. It has NPT Female Connection on both sides with shape of elbow (L shape)

Standard Material for 45 deg Elbow, 10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .

Common sizes are:1/4″ NPT Female, 3/8″ NPT Female ,1/2″ NPT Female, 3/4″ NPT Female, 1″ NPT Female.

High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .

PART No.PLSF
 NPTF inch inchHEX
FHPF/10K/45EF/2-2I1/80.470.479/16
FHPF/10K/45EF/4I1/40.690.693/4
FHPF/10K/45EF/6I3/80.750.757/8
FHPF/10K/45EF/8I1/20.940.941-1/16
FHPF/10K/45EF/12I3/41.001.001-5/16
FHPF/10K/45EF/16I11.191.191-5/8
